Valv Kontwol Lora Dlo Met

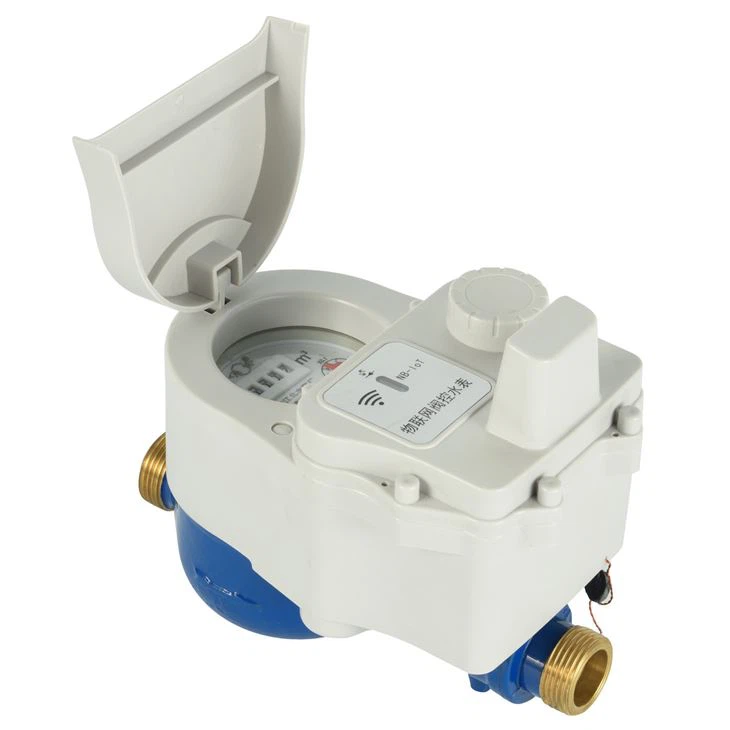

LXSGY-15WLF pou LXSGY-50WLF (15mm 50mm) se yon kalite met entelijan ak fonksyon kontwol aleka ak valv, pratik pou jesyon an entelijan nan konpayi an ekipman pou dlo, ak konsepsyon fann (pati yo elektwonik yo sele separeman ak klas la prev dlo ka IP 68), ak milti jet met la kalite sek kom met la baz.
Karakteristik:
Pati mekanik la nan met Lora se milti kalite je mouye oswa kalite sek, ak presizyon nan segonde, ki ba komanse pousantaj koule, fasil lekti, lavi long, elatriye.
Reyinyon EMC / ESD / EMI, kondisyon yo konsepsyon nan konpatibilite elektwomayetik pou pwodwi yo elektwonik, rive endistriyel nivo a ki mennen.
Se modil la san fil separe ak pati nan mekanik, pou maintainance fasil.
Pati elektwonik yo separeman sele, epi klas prev dlo a kapab IP 68.
Pa gen fil elektrik, ak enstalasyon fasil.
Avek fonksyon kontwol valv.
Remote valv kontwol: li ka remote kontwol valv la si aryere.
Kraze valv le atake: le met la atake pa Leman oswa elektrisite, li pral femen valv la ak alam otomatikman.
Deklanche / Bouton uploading: nomalman, kontwol la valv NB met se nan super estati konsomasyon pouvwa ki ba. Apre deklanche oswa bourade bouton an, done aktyel yo ak estati ki ap travay yo ta ka telechaje pa modil la.
Senen valv le nan batri ki ba: le voltaj la batri se mwens pase yon sel seten nimewo, modil la ka femen valv la otomatikman, ak Upload done yo.
Senen valv le soti nan pouvwa: le met la soti nan pouvwa, valv la ta dwe femen ak upload done yo ak ed nan capacitor la Farad.
Detecting valv a: li pral otomatikman jije si chanjman nan limit ap travay nomalman, e menm si li pa ap travay, valv la ka femen sou oswa koupe kom nomal. Si valv la se mal, met la ap alam.
Pa gen fil elektrik, ak enstalasyon fasil.
Paramet nan Elektwonik
| Atik | Paramet | Not |
| Travay Voltaj | 2.7-3.6 V | Ityom batri |
| Tanperati ki ap travay | -20-75ºC | Modil elektwonik la |
| Travay imidite | 10%-90% imidite relatif, pa gen kondansasyon | |
| Frekans travay | 470-510MHz 868-915MHz | fe lod |
| RF Modulation | LoRa | Estati tranzisyonel ekipman wireless pa ka pran ak analize siyal la. |
| Transmet pouvwa | ≤100mW | 20dBm (maksimom) |
| Resevwa sansiblite | -136±1dBm | |
| Distans kominikasyon | 1-3Km | Vil ki antoure. Diferan ki antoure, diferan kominikasyon distans. |
| Estatik aktyel | <> | |
| Mwayen aktyel | <> | |
| Transmet aktyel | <> | |
| Resevwa aktyel | <> | |
| Reveye tan | Instant reveye | Tan reyel reveye |
| Lavi batri | Apepre 6 ane |
Otomatik rezo Topology nan met dlo Lora.
Estanda Konfomite
Teknik done ki gen fom nan ISO 4064 Klas B, Klas C, R80, R100, R125 oswa R160 estanda pou enstalasyon orizontal.
Kondisyon travay:
Tanperati dlo: ≤50ºC pou met dlo fret; ≤90ºC pou met dlo cho
Imilite: 0 ~ 95% RH
Travay presyon: ≤1,0 Mpa.
Presyon pet: ≤0.063 mpa.
Anviwonman klas: B (enstale andedan).
Elektwomayetik klas: E1 (rezidansyel, komesyal ak ligh indurical).
Tan Prev dlo: IP 68.
Kondisyon enstalasyon
* Met la ta dwe enstale nan pozisyon orizontal ak direksyon an nan koule a jan sa te di pa jete nan flech nan ko a met ak egal nan figi enskri.
* Pipeline dwe ouji anvan enstalasyon.
* Met la ta dwe toujou plen dlo pandan operasyon.
Maksimom Admisib ere
Nan zon ki pi ba a soti nan Qmin (Q1) enklizif jiska men eksepte Qt (Q2) se ±5%.
Nan zon anwo a soti nan Qt (Q2) enklizif jiska ak ki gen ladan Qmax (Q4) se ±2% (met dlo fret).
Nan zon anwo a soti nan Qt (Q2) enklizif jiska ak ki gen ladan Qmax (Q4) se ±3% (met dlo cho).
Pwodwi pou Telefon
Chak met dlo gen yon sel mete couplings si ou vle: 2pcs tib, 2pcs nwa ak 2pcs Joint
MAIN DONE TEKNIK Dapre ISO4064:2003 (Old Creole)
| Grandè | Pous | Klas | Qs | Qp | Qt | Qmin | Min lekti | Max lekti |
| Surcharge koule | Vale nominal koule | Estati tranzisyonel koule | Min koule | |||||
| DN (mm) | m³/h | L/h | m³ | |||||
| 15 | 1/2" | Yon | 3 | 1.5 | 150 | 60 | 0.00005 | 99999 |
| B | 120 | 30 | ||||||
| C | 22.5 | 15 | ||||||
| 20 | 3/4" | Yon | 5 | 2.5 | 250 | 100 | 0.00005 | 99999 |
| B | 200 | 50 | ||||||
| C | 37.5 | 25 | ||||||
| 25 | 1" | Yon | 7 | 3.5 | 350 | 140 | 0.00005 | 99999 |
| B | 280 | 70 | ||||||
| C | 52.5 | 35 | ||||||
| 32 | 11/4" | Yon | 12 | 6 | 600 | 240 | 0.00005 | 99999 |
| B | 480 | 120 | ||||||
| C | 90 | 60 | ||||||
| 40 | 11/2" | Yon | 20 | 10 | 1000 | 400 | 0.00005 | 99999 |
| B | 800 | 200 | ||||||
| 50 | 2" | Yon | 30 | 15 | 4500 | 1200 | 0.00005 | 99999 |
| B | 3000 | 450 | ||||||
PRENSIPAL DONE TEKNIK Dapre ISO4064:2014 (Nouvo Creole)
| DN | Mm | 15 | 20 | 25 | 32 | 40 | 50 |
| GRANDÈ | Pous | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" |
| Q4 (m³/h) | 3.125 | 5 | 7.875 | 12.5 | 20 | 31.25 | |
| Q3(m³/h) | 2.5 | 4 | 6.3 | 10 | 16 | 25 | |
| R80 | Q2 (L/h) | 50 | 80 | 126 | 200 | 320 | 500 |
| Q1 (L/h) | 31.25 | 50 | 78.75 | 125 | 200 | 312.5 | |
| R100 | Q2 (L/h) | 40 | 64 | 100.8 | 160 | 256 | 400 |
| Q1 (L/h) | 25 | 40 | 63 | 100 | 160 | 250 | |
| R125 | Q2 (L/h) | 32 | 51.2 | 80.64 | 128 | 204.8 | 320 |
| Q1 (L/h) | 20 | 32 | 50.4 | 80 | 128 | 200 | |
| R160 | Q2 (L/h) | 25 | 40 | 63 | 100 | 160 | 250 |
| Q1 (L/h) | 15.62 | 25 | 39.37 | 62.5 | 100 | 156.2 | |
| Min lekti (m³) | 0.00005 | 0.00005 | 0.00005 | 0.00005 | 0.00005 | 0.00005 | |
| Max lekti (m³) | 99999 | 99999 | 99999 | 99999 | 99999 | 99999 | |
| Max presyon (kat) | 16 | 16 | 16 | 16 | 16 | 16 | |
| Max pet (ΔP) | 63 | 63 | 63 | 63 | 63 | 63 | |
| Max tanperati | T50 | T50 | T50 | T50 | T50 | T50 | |
Dimansyon ak pezet
| Gwose (DN) | Kouche plat | Konekte fil | ||
| Longe L | Laje B | Wote H | ||
| mm | mm | D | ||
| 15 | 165 | 90 | 150 | G3/4B |
| 20 | 195 | 90 | 152 | G1B |
| 25 | 225 | 104 | 175 | G11/4B |
| 32 | 230 | 104 | 175 | G11/2B |
| 40 | 245 | 125 | 210 | G2B |
